€ 5276,00 - Preço s/IVA

Pretende adquirir este produto ou necessita de esclarecimentos adicionais? Contacte-nos em
“MAIS INFORMAÇÕES”.

Informações

Descrição

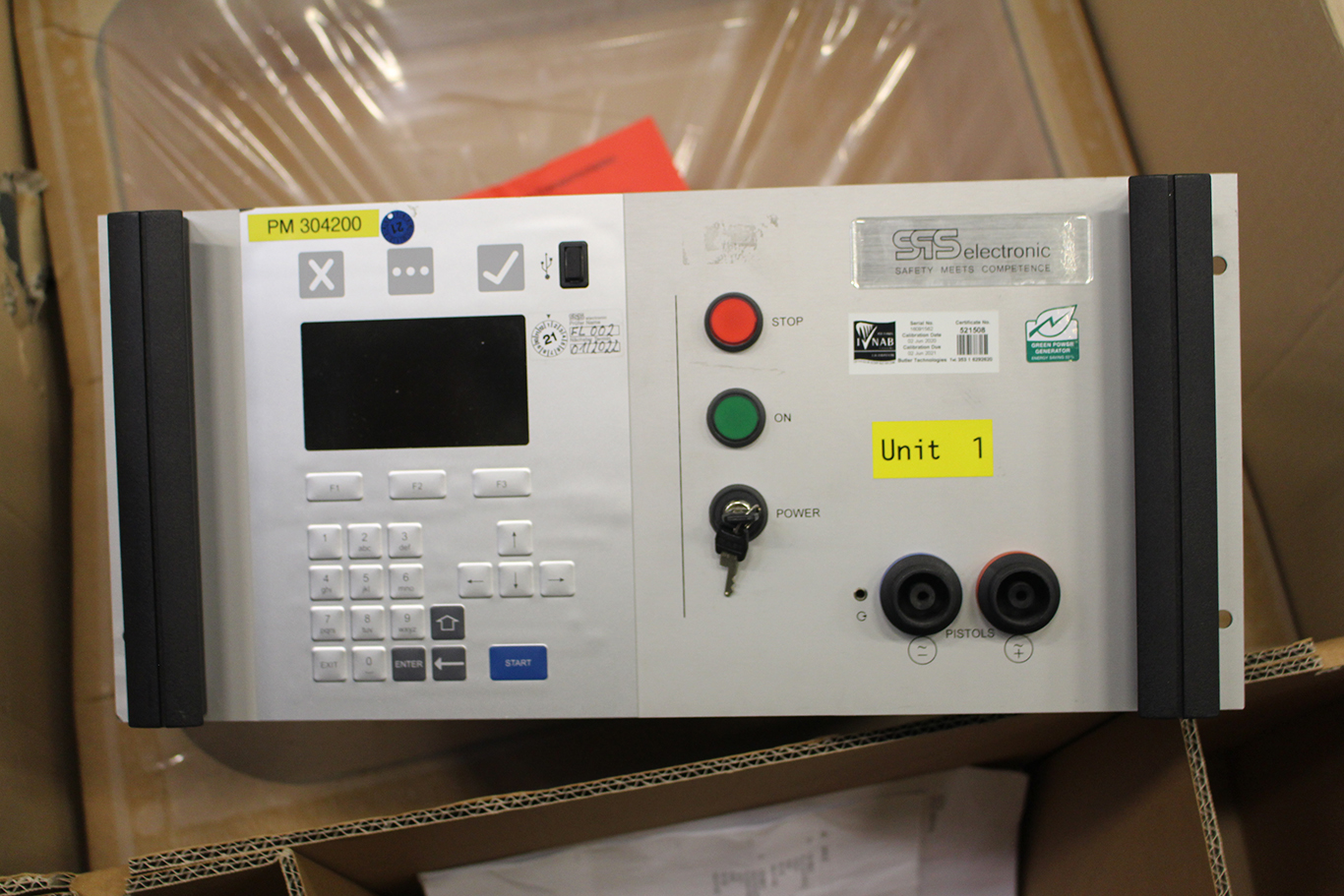

Nota: Garantia de funcionamento. Devolução aceite no primeiro mês após aquisição em caso de anomalia. High voltage test devices with integrated safety current limitation at DC and AC voltage. With a few exceptions applicable in all global standards. In these devices the protection of the employee is „on-board“, there is no additional safety protection required. High voltage test AC: Voltage range: 100 up to 5,500 V Current range: 0 up to 3 mA Short circuit current: < 3 mA High voltage test DC Voltage range: 100 up to 6,000 V Current range: 0 up to 10 mA Short circuit current: < 12 mA Residual ripple: < 3 % Insulation measurement DC Voltage range: 100 up to 6,000 V Measuring range (voltage dependent): 250 kΩ up to 1 GΩ Residual ripple: < 3 % Subjective tests Text step: subjective or informative General data Threshold values: all programmable Error message: visual and audible Ramp function: programmable (IEC 601) Generator: fully electronic, digital technology Memory :180 MByte Additional function: programmable inputs and outputs Dimensions (HxWxD) and weight plug-in 19“ / 5 HU: HA 1880B: 222 x 483 x 483 mm / approx. 17.0 kg 8.7 x 19.0 x 19.0 in. / approx. 37.5 lbs. Dimensions (HxWxD) and weight desktop device: HA 1800B 233 x 380 x 450 mm / approx. 11.5 kg 9.2 x 15.0 x 17.7 in. / approx. 25.4 lbs. Mains supply: 90 up to 250 V, 50 Hz / 60 Hz Interfaces Computer interfaces: 2 x USB, RS 232, Ethernet / LAN, CAN Digital interface: 24 VDC 8 input + 8 output Operation Keypad for input: 4.3“-TFT colour display
