€ 212,67 - Preço s/IVA

Pretende adquirir este produto ou necessita de esclarecimentos adicionais? Contacte-nos em
“MAIS INFORMAÇÕES”.

Informações

Descrição

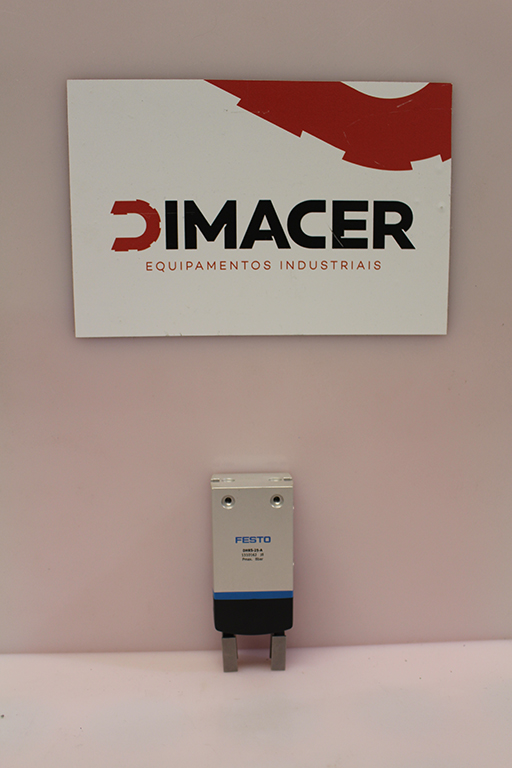

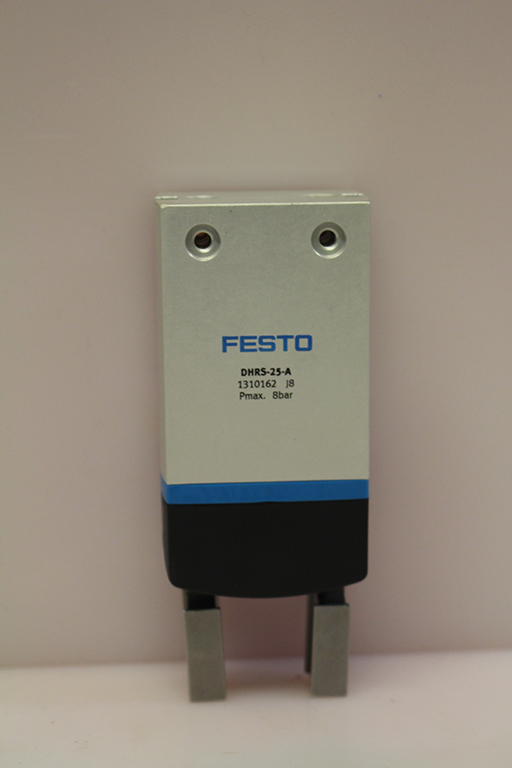

Nota: Garantia de funcionamento. Devolução aceite no primeiro mês após aquisição em caso de anomalia. Size: 25 Max. replacement accuracy: 0.2 mm Max. opening angle: 180 deg Rotationally symmetrical: 0.2 mm Repetition accuracy, gripper: 0.1 mm Number of gripper jaws: 2 Mounting position: optional Mode of operation: Double-acting Gripper function: Radial Design: Force pilot operated motion sequence Position detection: Via proximity switch Symbol: 00991894 Operating pressure: 2 bar ... 8 bar Max. operating frequency of gripper: 3 Hz Min. opening time at 0.6 MPa (6 bar, 87 psi): 102 ms Min. closing time at 0.6 MPa (6 bar, 87 psi): 105 ms Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC: 1 - Low corrosion stress LABS (PWIS) conformity: VDMA24364-B2-L Suitability for the production of Li-ion batteries: Metals with more than 5% copper by mass are excluded from use. Exceptions are printed circuit boards, cables, electrical plug connectors and coils Ambient temperature: 5 °C ... 60 °C Total gripping torque at 0.6 MPa (6 bar, 87 psi), opening: 233 Ncm Total gripper torque, closing, 0.6 MPa (6 bar, 87 psi): 215 Ncm Mass moment of inertia: 0.69 kgcm² Max. force on gripper jaw Fz static: 75 N Max. torque at gripper Mx static: 3.2 Nm Max. torque at gripper My static: 3.2 Nm Max. torque at gripper Mz static: 3.2 Nm Product weight:270 g Type of mounting: Either: Via female thread and centring sleeve Via through-hole and centring sleeve Pneumatic connection: M5 Note on materials: RoHS-compliant Material cover cap: PA Material housing: Hard anodised wrought aluminium alloy Material gripper jaws: High-alloy steel
